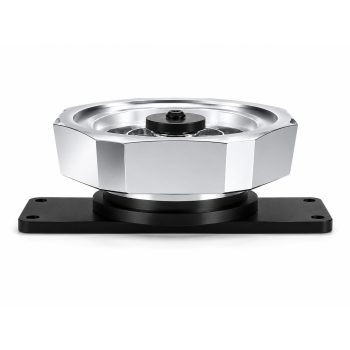

Integrated Glass Polygon Mirror Scanning Motor
- group name
- Integrated Glass Polygon Mirror Scanning Motor
- Min Order
- 1 piece
- brand name
- Solismotor Custom Robot Joint Drives
- update time
- Tue, 22 Sep 2026 12:22:12 GMT
Paramtents
Model CL0-6845-1216
Rated Torque 8mN·m
Rated Speed 1500rpm
Rated Current ≤0.2A
Rated Voltag 12v
Working Temperature -20℃~85℃
insulation of motor coil Class F
Weight ~290g
Dimension Ø68*45mm
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
CL0-5028-1214-Glass-Mounted Polygon Mirror Scanning Motor
The Solis Motor Integrated Glass Polygon Mirror Scanning Motor is specifically designed for high-speed laser scanning, precision optical deflection, and intelligent inspection systems. It highly integrates a high-performance brushless motor, high-precision bearings, optical-grade glass polygon mirror, drive electronics, and precision mechanical structure into a compact unit, delivering high-speed rotation, low vibration, and high-precision beam control. With excellent dynamic performance and reliability, the product is widely used in advanced precision optical applications such as LiDAR, 3D scanning, laser processing, AOI inspection, medical optics, and scientific instruments, providing customers with a stable, efficient, and easy-to-integrate optical scanning solution.
Engineered for Precision Motion
Highly Integrated Design
The motor, glass polygon mirror, bearings, and mounting structure are integrated into a compact unit, significantly reducing system assembly errors and improving overall reliability. This helps shorten product development cycles and simplifies system integration.High-Precision Glass Polygon Mirror
Featuring an optical-grade, high-reflectivity glass polygon mirror with excellent surface flatness, reflection efficiency, and optical consistency, the motor effectively minimizes beam distortion while improving scanning accuracy and imaging quality..
High-Speed Dynamic Performance
An optimized rotor structure and low-inertia design enable rapid start/stop operation and stable high-speed rotation, meeting the requirements of high-speed scanning, high refresh rates, and high-frequency beam control.Excellent Rotational Stability
High-precision bearings combined with precision dynamic balancing effectively reduce vibration and mechanical noise, ensuring excellent angular stability and repeatability even during prolonged high-speed operation.
Long-Life Industrial Design
Critical components are manufactured from industrial-grade materials using precision machining processes, ensuring reliable long-term continuous operation in demanding industrial environments.Flexible Customization
Customization is available for glass polygon mirror specifications, reflective coatings, mounting dimensions, rotational speeds, interfaces, and drive configurations, enabling the motor to meet the requirements of a wide range of optical systems.
Technical Specifications
Key Applications
Humanoid Robots
Joint actuation for bipedal and full-body humanoid platforms
Collaborative Robots
Safe, precise motion for robot arms and grippers
Exoskeletons
Power assist and rehabilitation exoskeleton systems
Education & Research
Robotics labs, university projects, and prototyping
Medical Assistants
Surgical robots and rehabilitation equipment
Smart Automation
Automated guided vehicles and smart manufacturing
