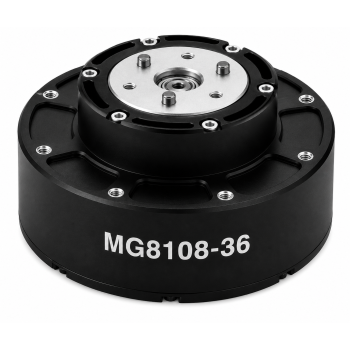

Knee Joint Motor MG 8108-36 – BLDC Servo with 36:1 Planetary Gearbox
- group name
- Knee Joint Motor
- Min Order
- 1 piece
- brand name
- Solismotor Custom Robot Joint Drives
- update time
- Tue, 22 Sep 2026 14:47:36 GMT
Paramtents
Model MG8108-36
Rated Torque 32.76N·m
Peak Torque 109.50N·m
Gear Ratio 36:1 Planetary
Encoder 14-Bit, Dual Support
Communication CAN Bus / RS485
Protection IP54
Weight ~760g
Dimension Ø96*57mm
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
MG8108-36 Integrated Robot Joint Motor
Achieving high torque output, precise position control, and excellent dynamic response performance within a compact structure. It supports position control, velocity control, torque control, and MIT hybrid control modes, meeting the motion control requirements of multi-degree-of-freedom robot joints under high-load, low-speed, and high-precision operating conditions.
Engineered for Precision Motion
Feature – Integrated All-in-One Design
The MG8108-36 integrates a BLDC servo motor, 36:1 planetary gearbox, drive electronics, and dual encoders in a singleØ96*57mm housing. This eliminates the need for separate component sourcing, wiring, and tuning.
Advantage – Reduced System Complexity
By combining motor, gearbox, driver, and encoder into one module, engineers can cut development time by up to 60% and simplify overall system architecture significantly.
Benefit – Faster Time to Market
With plug-and-play integration, R&D teams can focus on application-level development rather than motor control, accelerating robot prototyping and production ramp-up.
Feature – High Torque Density
Rated output torque of 32.76N·m with peak stall torque reaching 109.50N·m. The 36：1 planetary gearbox delivers exceptional torque density in a compact form factor.
Advantage – Superior Dynamic Performance
High torque-to-weight ratio enables faster acceleration, smoother motion, and greater load capacity — critical for responsive robot joint movement.
Benefit – Handles Demanding Applications
Suitable for humanoid robots, collaborative robots, and exoskeletons where high torque and compact size are essential for natural, powerful motion.
Feature – Dual Encoder Feedback & IP54 Protection
Built-in 14-bit high-resolution encoder with support for secondary encoder feedback on the output shaft. IP54-rated sealed housing protects against dust and water splashes.
Advantage – Precision & Reliability
Dual-loop feedback ensures accurate position, speed, and torque control. IP54 enables deployment in harsh industrial environments without performance degradation.
Benefit – Long-Term Operational Stability
Reliable feedback and environmental protection reduce maintenance needs and ensure consistent performance over extended operating periods.
Technical Specifications
Key Applications
Humanoid Robots
Joint actuation for bipedal and full-body humanoid platforms
Collaborative Robots
Safe, precise motion for cobot arms and grippers
Exoskeletons
Power assist and rehabilitation exoskeleton systems
Education & Research
Robotics labs, university projects, and prototyping
Medical Assistants
Surgical robots and rehabilitation equipment
Smart Automation
Automated guided vehicles and smart manufacturing
